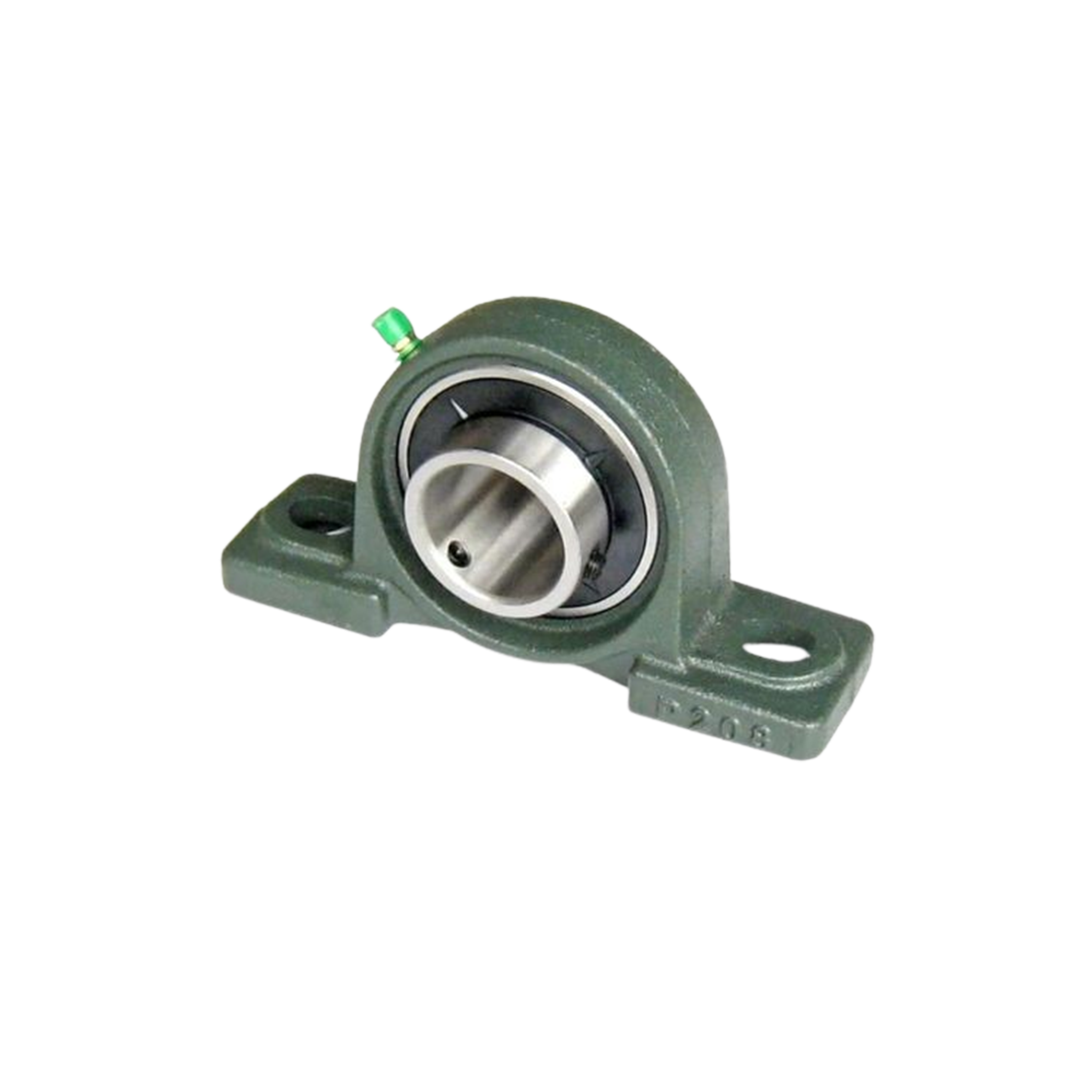

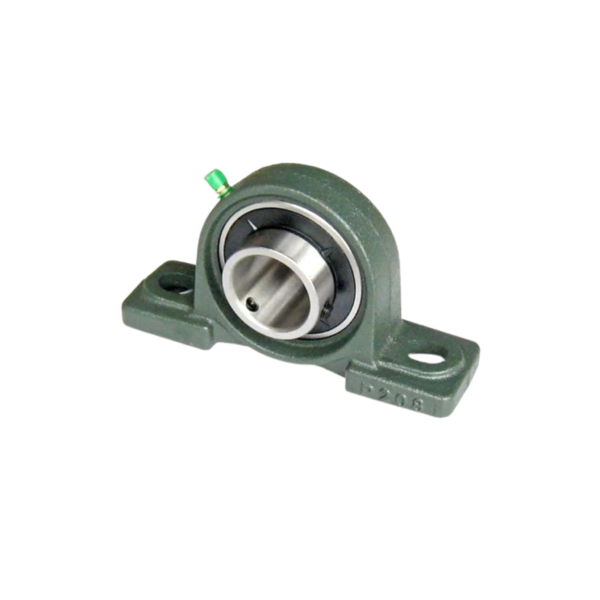

Pillow Block Bearing Unit – UCP208 (40 mm Bore)

Pillow Block Bearing Unit – UCP208 (40 mm Bore)

Bearing for shaft

Reliable Shaft Support for Industrial Applications – Supplied by Doorgroup

The UCP208 Pillow Block Bearing Unit is a robust and versatile solution for supporting rotating shafts in medium to heavy-duty applications. With a 40 mm bore and a durable cast iron housing, this unit is engineered for long-lasting performance in demanding industrial environments.

Key Features:

• Bearing Type: Insert ball bearing with spherical outer diameter for self-alignment
• Housing Design: 2-bolt pillow block (plummer block) for secure and stable mounting
  Mounting Method: Set screws on extended inner ring for firm shaft retention
• Housing Material: High-strength cast iron (HT200 grade)
• Bearing Material: Chrome steel (GCr15) for high wear resistance
• Sealing Options: Available with double seal, R3 (Triple-Lip), or F Seal for enhanced protection
• Lubrication: Pre-lubricated with grease and includes a grease fitting for easy re-lubrication

Performance Ratings:

• Dynamic Load Capacity: 30.7 kN
• Static Load Capacity: 19 kN
• Speed Rating: Up to 3750 RPM (depending on seal type and application)

Dimensions:

• Bore Diameter (d): 40 mm
• Center Height (h): 49.2 mm
• Housing Length (a): 184 mm
• Bolt Hole Center Distance (e): 137 mm
• Housing Width (b): 54 mm
• Mounting Slot (S1 × S2): 17 mm × 20 mm
• Base Thickness (g): 18 mm
• Total Bearing Width (Bi): 49.2 mm
• Mounting Bolt Size: M14
• Weight: Approx. 2.00 kg

Ideal Applications:

• Agricultural equipment
• Conveyor systems
• HVAC systems and industrial fans
• Textile and printing machinery
• Construction and mining equipment
• Automotive and transport systems

UCP208 – Engineered for strength, built for reliability. Supplied by Doorgroup.
