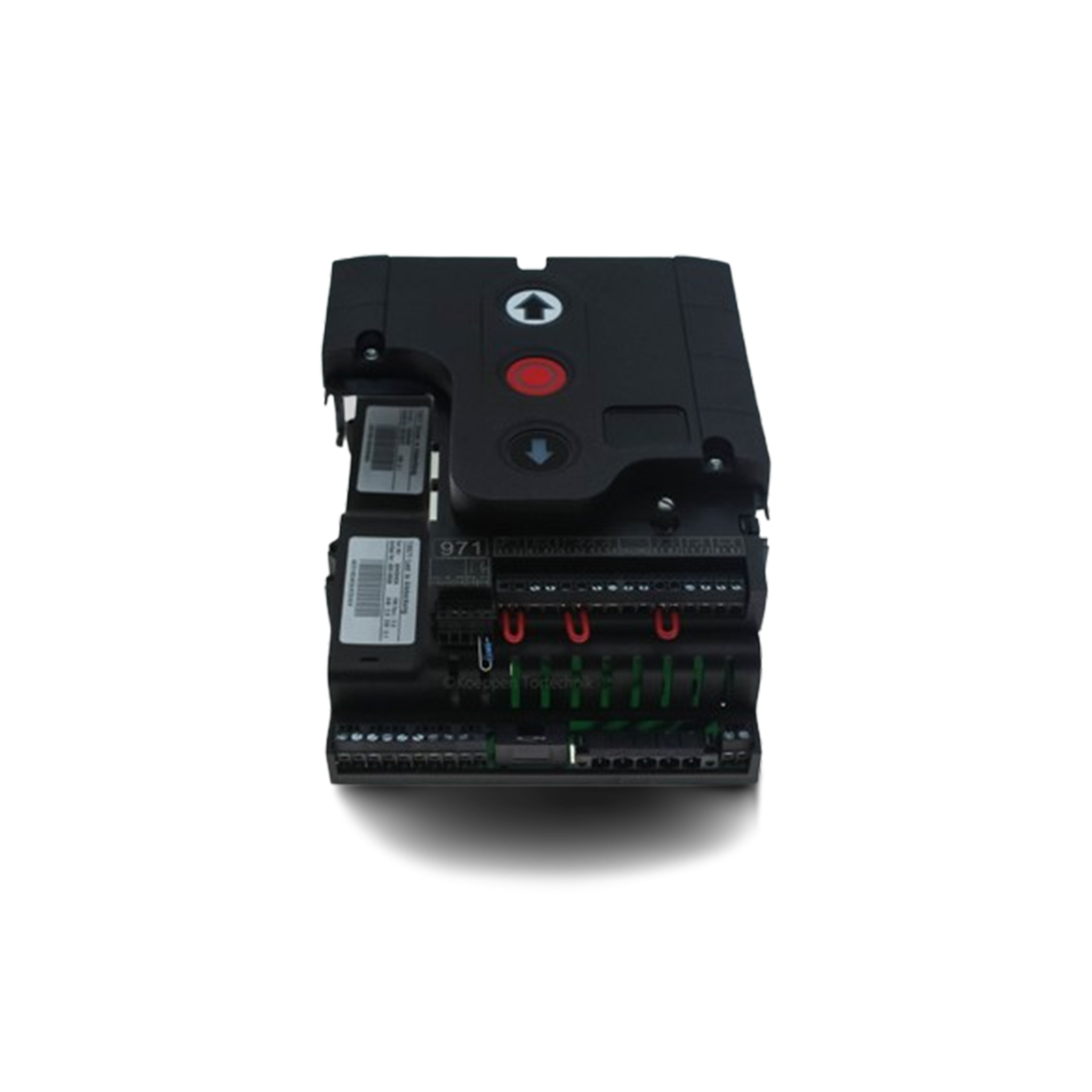

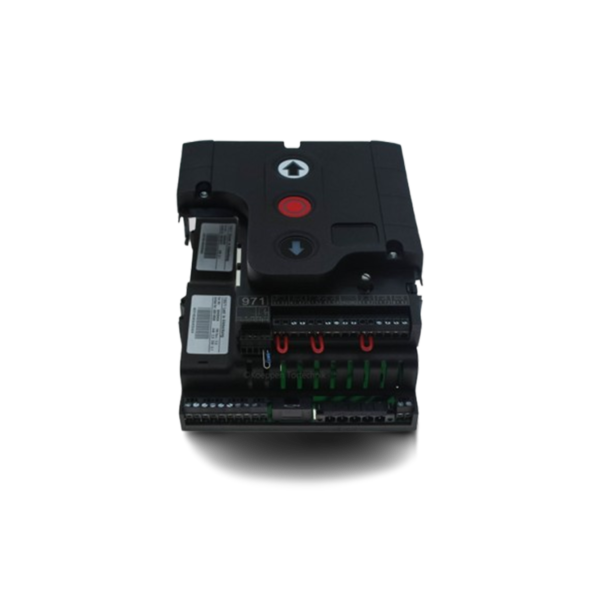

TS 971 Control Panel (Without Cover)

TS 971 Control Panel (Without Cover)

Modular, Open-Frame Door Control – Supplied by Doorgroup

The TS 971 Control Panel (Without Cover) is a high-performance, open-frame control unit designed for seamless integration into custom-built enclosures and centralized automation systems. Ideal for OEMs, panel builders, and retrofit specialists, this version offers full access to internal components for flexible installation and serviceability.

Key Features:

• Open-Frame Design
  Delivered without a protective housing, making it ideal for integration into custom control cabinets or industrial automation panels.
• Advanced Door Control
  Supports both DES (digital) and NES (mechanical) limit switch systems with automatic detection and configuration.
• Integrated User Interface
  Includes UP-STOP-DOWN push buttons, a digital display, and a selector switch for intuitive programming and real-time diagnostics.
• Comprehensive Safety Integration
  Interfaces with safety edges, photo cells, and emergency stop systems in compliance with EN 12453 and ISO 13849-1 standards.
• UBS Accessory Support
  Equipped with 5 plug-in points for quick connection of accessories such as radio receivers, key switches, and light curtains.

Technical Specifications:

• Control Voltage: 24 V DC
• Power Supply: 1N230 V, 3230 V, 3N400 V, or 3400 V
• Protection Class: IP00 (requires installation in a protective enclosure)
• Operating Temperature: -10 °C to +50 °C
• Memory Slot: MMC/SD card slot for firmware updates and configuration backups

Ideal Applications:

• Custom-built industrial control panels
• Retrofitting and service-friendly installations
• Centralized automation systems
• OEM door control solutions

TS 971 (Without Cover) – Full access, full control. Exclusively from Doorgroup.
