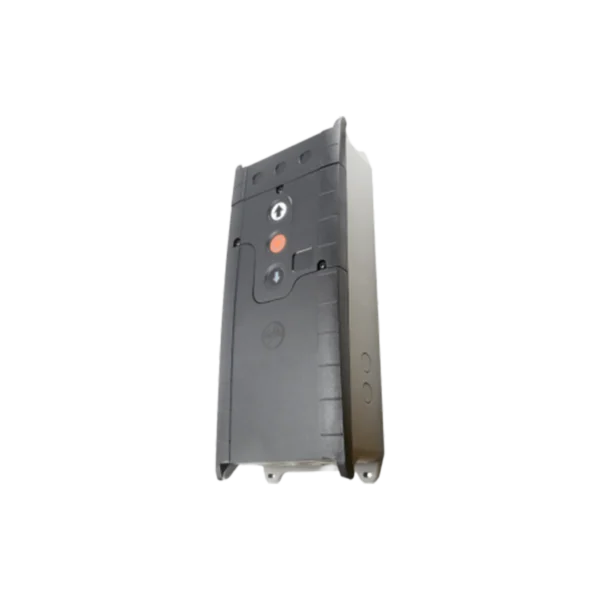

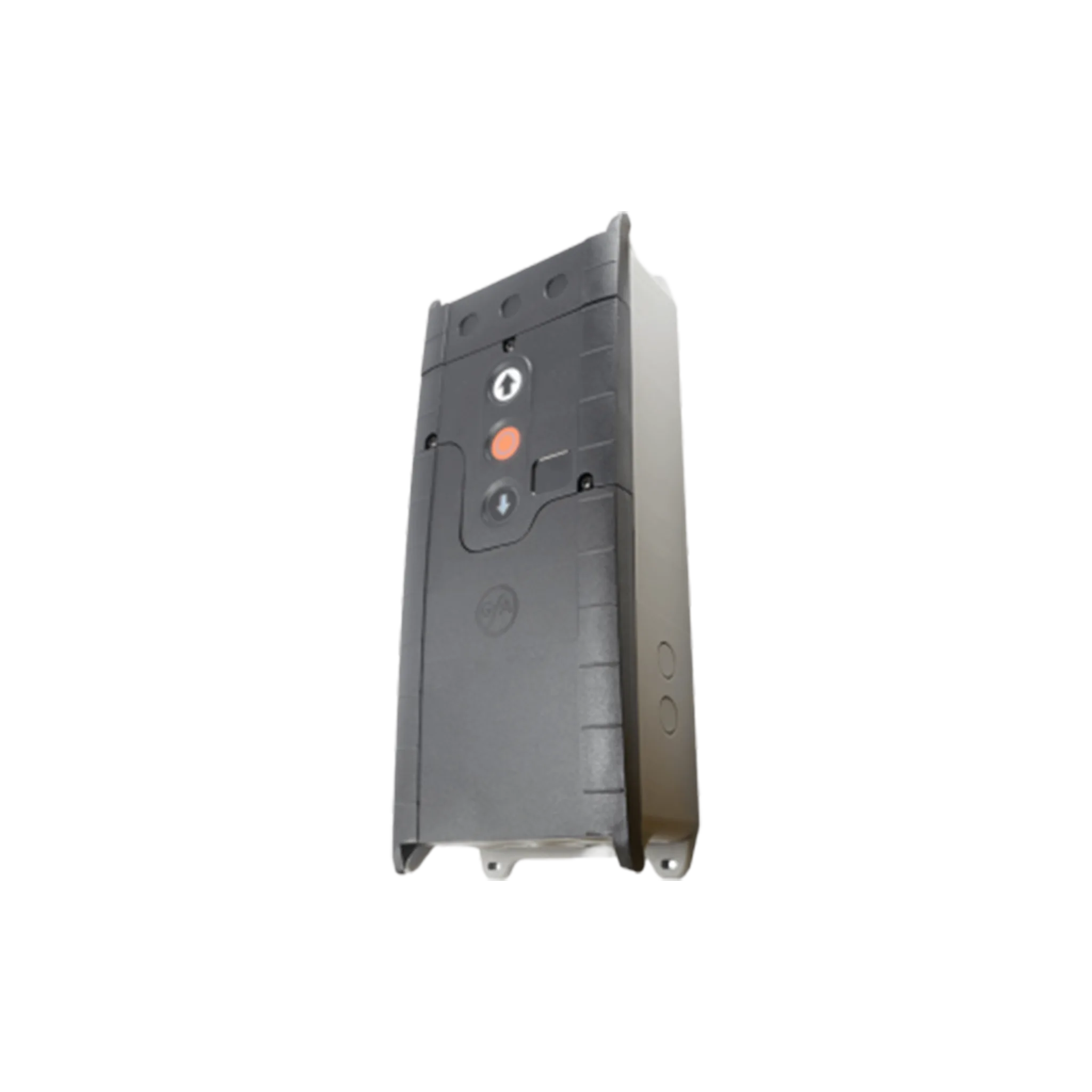

TS 970 Control Box + 1m Cable + Plug

TS 970 Control Box + 1m Cable + Plug

Compact, Pre-Wired Control Solution – Available from Doorgroup

The TS 970 Control Box with a pre-installed 1-meter cable and plug offers a streamlined, plug-and-play solution for industrial door automation. Designed for quick deployment and reliable performance, this unit is ideal for both new installations and retrofit projects where time and simplicity are key.

Key Features:

• Quick Installation
  Supplied with a factory-fitted 1-meter cable and plug for fast, error-free connection to compatible door motors.
• Dual Limit Switch Compatibility
  Supports both digital (DES) and mechanical (NES) limit switch systems, offering flexibility across various motor types.
• User-Friendly Interface
  Integrated UP-STOP-DOWN push buttons and a digital display make setup, diagnostics, and operation straightforward.
• Customizable Operation Modes
  Choose from hold-to-run, self-hold, or automatic closing with adjustable delay to suit your application needs.
• Smart Safety Integration
  Automatically detects and configures safety edge systems, including optical, 8k2 resistive, and NC-contact (1k2) types.

Technical Specifications:

• Control Voltage: 24 V DC
• Protection Class: IP54 (suitable for indoor environments)
• Relay Outputs: Programmable for auxiliary functions such as traffic light control=
• Memory Slot: MMC/SD card slot for firmware updates and configuration backups
• Operating Temperature: -10 °C to +50 °C

Ideal Applications:

• Sectional and rolling industrial doors
• Logistics and warehouse automation
• Retrofitting existing motor systems
• Projects requiring fast, low-complexity installation

TS 970 – Fast to install, built to perform. Supplied by Doorgroup.
