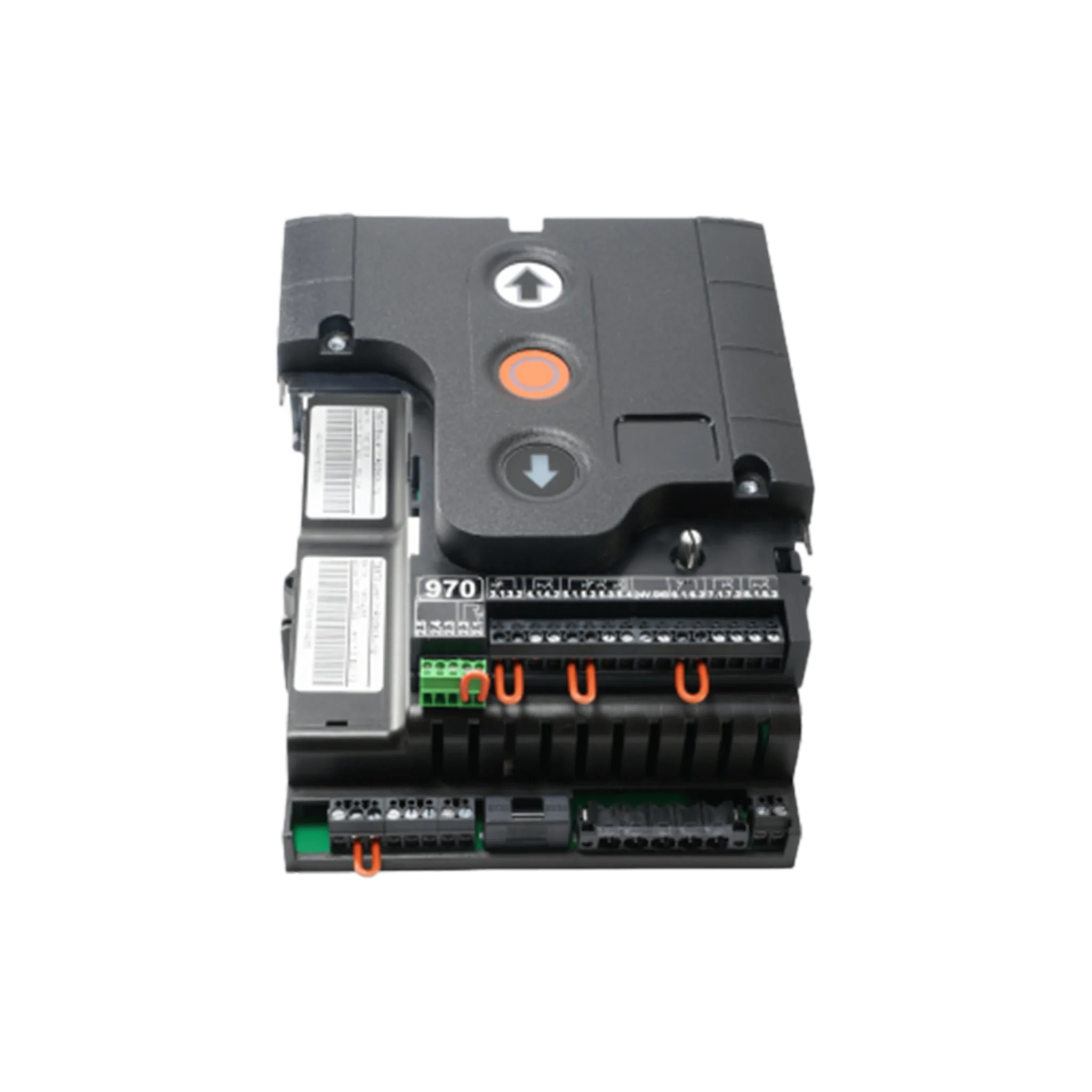

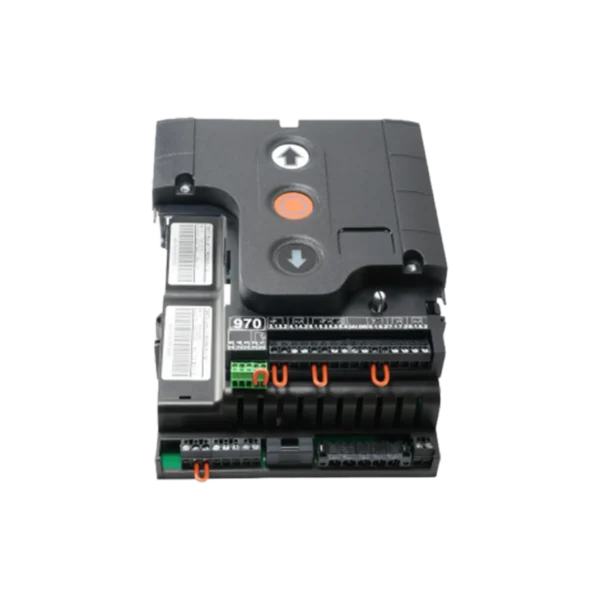

TS 970 Control Box (Without Cover)

TS 970 Control Box (Without Cover)

Open-Frame Industrial Door Controller – Supplied by Doorgroup

The TS 970 Control Box (Without Cover) is a compact, open-frame control unit designed for seamless integration into custom enclosures and centralized automation systems. Ideal for OEMs, panel builders, and service professionals, this version offers full access to internal components for flexible installation and easy maintenance.

Key Features:

• Open-Frame Design
  Delivered without a protective housing, making it ideal for integration into custom control cabinets or centralized panels.
• Dual Limit Switch Compatibility
  Supports both digital (DES) and mechanical (NES) limit switch systems, offering broad compatibility with various motor types.
• Integrated Controls
  Includes UP-STOP-DOWN push buttons and a digital display for intuitive programming, diagnostics, and real-time monitoring.
• Advanced Safety Integration
  Interfaces with safety edges, photo cells, and emergency stop systems in compliance with EN 12453 and ISO 13849-1 standards.
• Plug-In UBS System
  Features multiple UBS ports for quick connection of accessories such as sensors, radio receivers, and other automation components.

Technical Specifications:

• Control Voltage: 24 V DC
• Power Supply Compatibility: 1N230 V, 3230 V, 3N400 V, 3400 V
• Protection Class: IP00 (requires installation in a protective enclosure)
• Operating Temperature: -10 °C to +50 °C
• Memory Slot: MMC/SD card slot for firmware updates and configuration backups

Ideal Applications:

• Custom-built industrial control panels
• Retrofitting and service-friendly installations
• Centralized automation systems
• OEM door control solutions

TS 970 (Without Cover) – Flexible integration, full control. Supplied by Doorgroup.
