Control box TS981

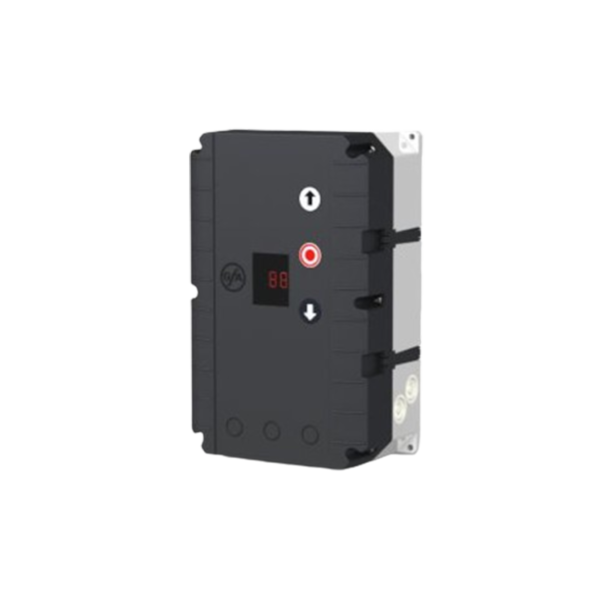

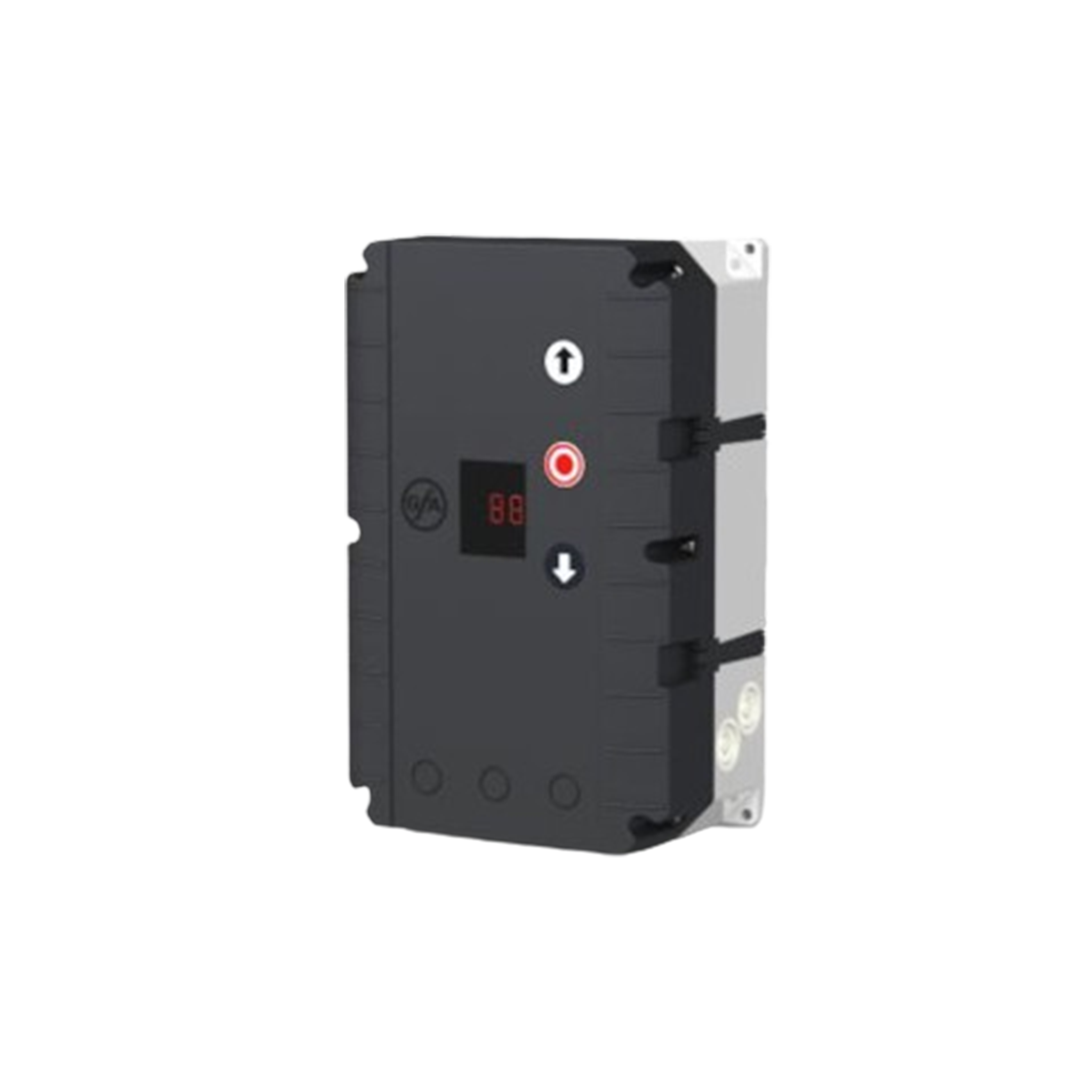

TS 981 Control Box

Advanced Door Control System – Offered by Doorgroup

The TS 981 Control Box is a high-performance control solution designed for industrial door automation. Engineered for precision, safety, and flexibility, it supports a wide range of operating modes and safety features, making it ideal for demanding environments such as warehouses, logistics centers, and manufacturing facilities.

Key Features:

• Flexible Power Compatibility
  Supports multiple power inputs including 1N230 V, 3230 V, 3N400 V, and 3400 V systems.
• Safe Control Voltage
  Operates on 24 V DC for enhanced safety and energy efficiency.
• Integrated User Interface
  Built-in OPEN-STOP-CLOSE control with digital display and selector switch for intuitive operation.
• Programmable Logic
  Offers configurable modes such as hold-to-run and self-hold for both opening and closing functions.
• Certified Safety Compliance
  Meets international safety standards including DIN EN 12453, EN 12978, EN 60335-1/-2-103, and ISO 13849-1.

Advanced Functionalities:

• Automatic Closing
  Adjustable delay (1–240 seconds) with interruption via photo cell for added safety.
• Safety Edge Detection
  Compatible with optical, NO-contact (8k2), and NC-contact (1k2) systems.
• Entrapment Protection
  Supports both optical and contact-based safety systems.
• Status Monitoring
  Displays current system status, fault history, and includes a non-resettable cycle counter.
• Maintenance Alerts
  Features a maintenance-cycle counter and overrun correction for proactive servicing.

Connectivity & Expansion:

• Modular Accessory Support
  Includes 5 plug-in points for photo cells, radio receivers, and other accessories.
• Programmable Relay Outputs
  Two configurable relays for auxiliary functions or status signaling.
• External Control Terminals
  Supports pull-switches, emergency stops, and key switches.
• Memory Slot
  MMC/SD card slot for software updates and configuration backups.

Specifications:

• Dimensions: 190 x 300 x 115 mm
• Protection Class: IP65 (hard-wired), IP54 (with CEE plug)
• Operating Temperature: -10 °C to +50 °C

TS 981 – Intelligent control, industrial reliability. Available exclusively through Doorgroup.
