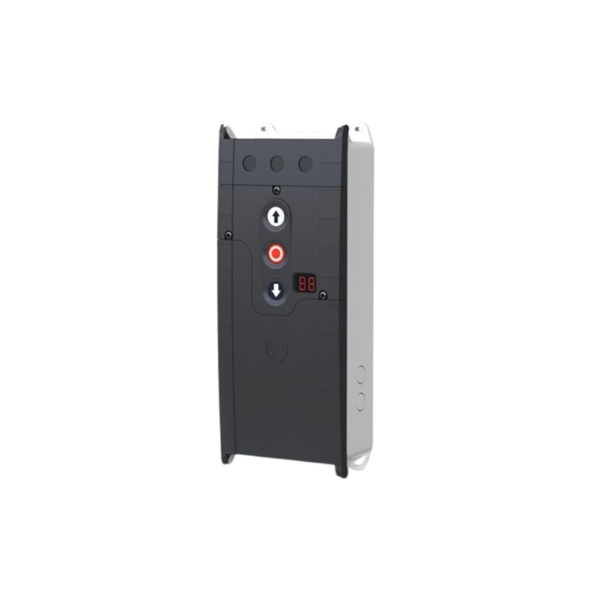

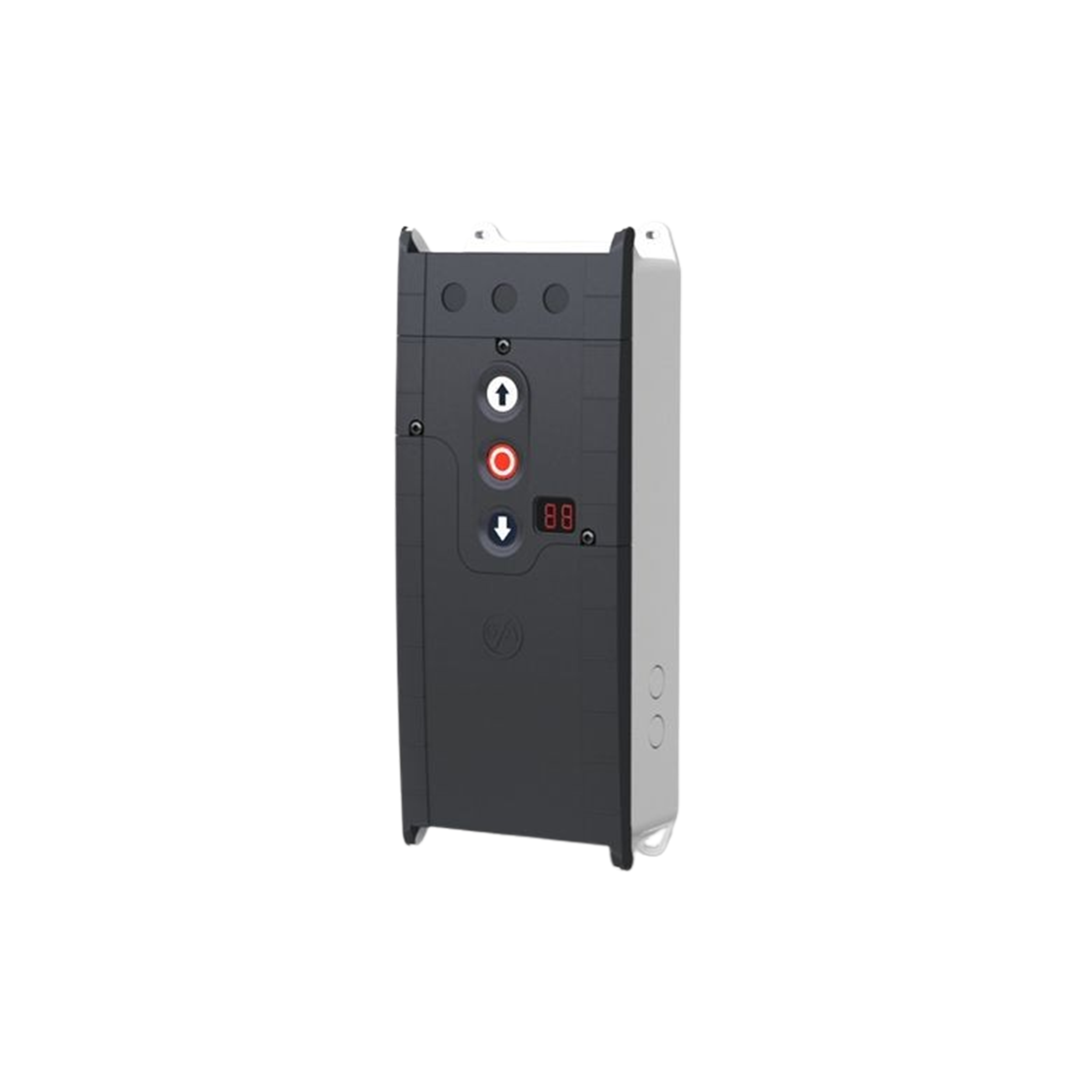

TS 971 Control Panel + 1m Cable + Plug

Fully Automatic Door Control – Plug-and-Play Convenience from Doorgroup

The TS 971 Control Panel with a pre-wired 1-meter cable and plug offers a smart, ready-to-install solution for industrial door automation. Designed for fast deployment and advanced functionality, this unit supports both digital and mechanical limit switch systems, making it ideal for new installations and retrofits alike.

Key Features:

• Plug-and-Play Setup
  Supplied with a 1-meter mains cable and CEE plug (3-pole or 5-pole), enabling quick and error-free installation.
• Integrated Controls
  Built-in OPEN-STOP-CLOSE push buttons, digital display, and selector switch for intuitive configuration and diagnostics.
• Automatic Limit Switch Detection
  Supports both DES (digital) and NES (mechanical) systems with auto-recognition for simplified setup.
• Advanced Safety Functions
  Includes safety reversing contactors, automatic safety edge detection (optical, 8k2, or 1k2), and programmable safety logic.
• UBS Accessory Support
  Easily connect photo cells, key switches, radio receivers, and more via plug-in UBS ports.

Technical Specifications:

• Power Supply: 1N230 V, 3230 V, 3N400 V, or 3400 V
• Control Voltage: 24 V DC
• Protection Class: IP65 (hard-wired), IP54 (with plug)
• Operating Temperature: -10 °C to +50 °C
• Dimensions: 155 x 386 x 90 mm

Functional Highlights:

• Adjustable automatic closing (1–240 seconds)
• Intermediate open position programming
• Reversing time adjustment for safety edge activation
• Two programmable relay outputs (e.g., for traffic lights or dock levellers)

Ideal Applications:

• Industrial roller shutters and sectional doors
• High-speed and vertical lift doors
• Logistics centers and warehouse automation
• Fast-track installations and retrofit projects

TS 971 – Intelligent control, rapid deployment. Supplied by Doorgroup.
