Emergency Stop Button

Emergency Stop Button
Reliable Shutdown Control for Critical Safety Operations – Supplied by Doorgroup

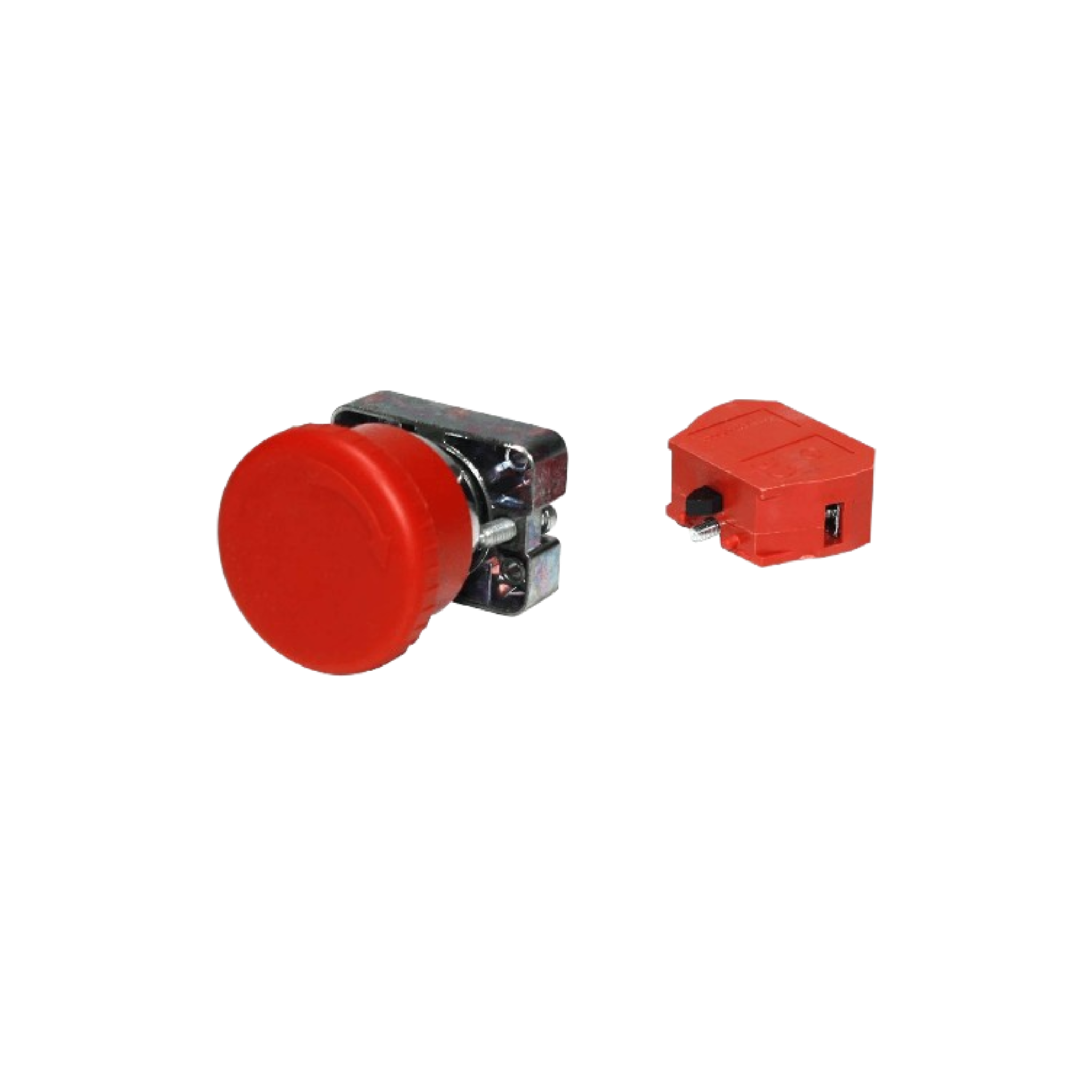

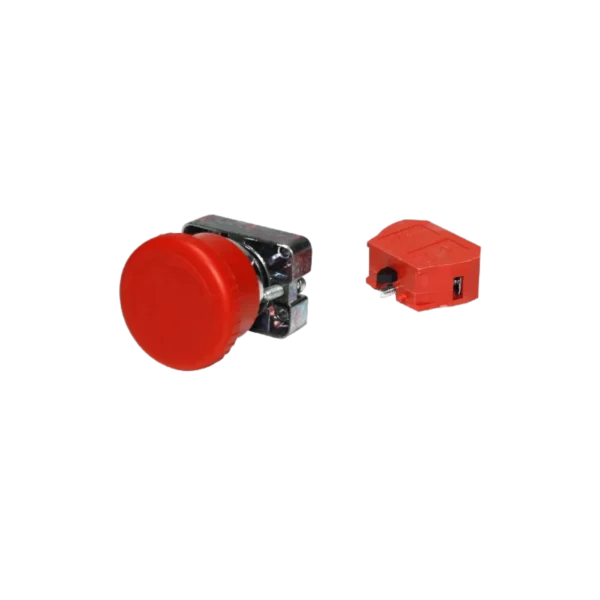

The Emergency Stop Button is a high-visibility, industrial-grade control device engineered to provide immediate machine shutdown in emergency scenarios. With a robust red mushroom head, fail-safe design, and tactile feedback, it ensures rapid human response to hazardous situations across diverse industrial environments.

Key Features:

• Actuator Type: 40 mm mushroom pushbutton – twist-to-release for secure reset

• Contact Configuration:

  • 1 × Normally Closed (N.C.) safety contact

  • 1 × Normally Open (N.O.) auxiliary contact

• Mounting Type: Panel mount with standard 22 mm diameter cutout

• Material Construction:

  • Head: Impact-resistant thermoplastic (red)

  • Housing: Durable thermoplastic or optional metal enclosure

• Ingress Protection: Rated IP65 – dust-tight and water-resistant for demanding conditions

• Electrical Ratings:

  • Voltage Range: 24–240 V AC/DC

  • Current Rating: Up to 6 A (resistive load)

• Reset Mechanism: Twist-release for intentional reactivation

• Operating Temperature: -25°C to +70°C

• Certifications: CE, UL, and EN ISO 13850 compliant

Ideal Applications:

• Emergency Shutdown: Provides immediate operator control in unsafe conditions

• Machine Tools: Halts dangerous operations during malfunction or maintenance

• Assembly Lines: Enables rapid intervention across production zones

• Robotics & Automation: Acts as a manual override in automated systems

Emergency Stop Button – Immediate, intuitive, and industrial-tough. Supplied by Doorgroup.
