GCH 1000 15m chain

Electric Chain Hoist – 1000 kg / 15 m Lift

GCH 1000 15m chain

Reliable Lifting for Demanding Industrial Applications – Supplied by Doorgroup

The Electric Chain Hoist (1000 kg / 15 m) is a robust and efficient lifting solution designed for industrial environments that require extended vertical reach. With a 15-meter lifting height and high-duty performance, this hoist is ideal for warehouses, production lines, and construction sites.

Key Features:

• Lifting Capacity: 1000 kg (1 ton)
• Lifting Height: 15 meters
• Lifting Speed: Approx. 4–8 m/min (depending on configuration)
• Motor: Three-phase asynchronous motor with built-in thermal protection
• Duty Classification: FEM 2m / ISO M5 – suitable for frequent, heavy-duty use

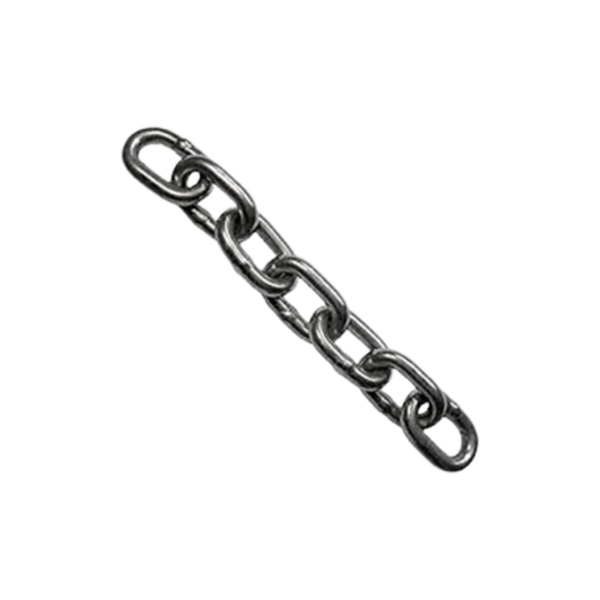

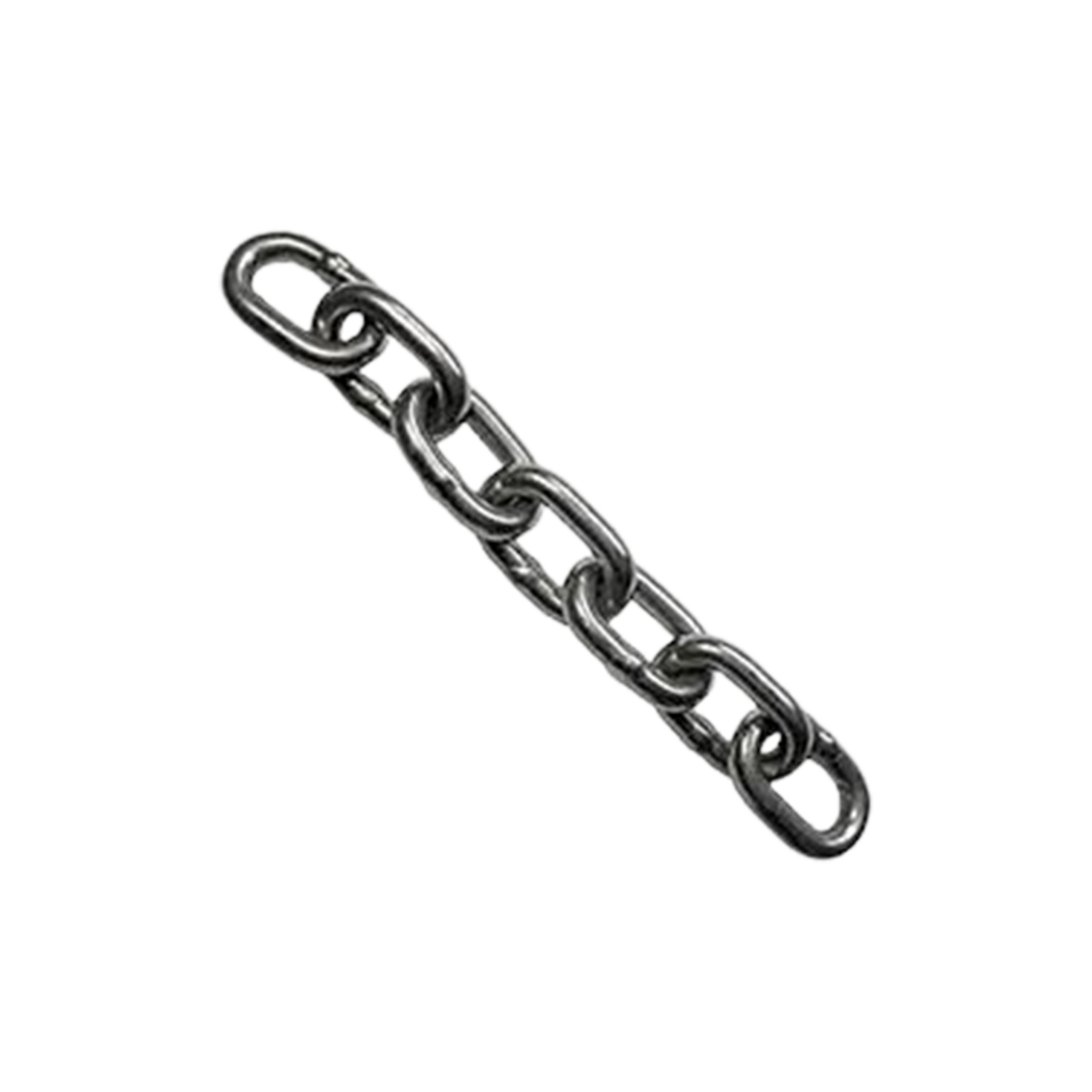

• Load Chain: High-strength, galvanized chain with precision guidance
• Braking System: Electromagnetic spring-loaded brake for secure and reliable load holding
• Limit Switches: Upper and lower limit switches for safe operation
• Mounting Options: Available with hook suspension or trolley mounting

Construction & Safety:

• Enclosure Rating: IP55 – protected against dust and water jets
• Noise Level: Typically below 75 dB for quieter operation
• Overload Protection: Integrated slip clutch or electronic overload device
• Control Voltage: 42V or 48V low-voltage pendant control for operator safety

Ideal Applications:

• Heavy-duty lifting in industrial environments
• Assembly lines and production facilities
• Warehousing and logistics operations
• Construction and infrastructure projects

Electric Chain Hoist – Engineered for performance and safety. Supplied by Doorgroup.
