Inductive Proximity Sensor – M12 PNP

Inductive Proximity Sensor – M12 PNP, Normally Open

Non-Contact Metal Detection for Industrial Automation – Supplied by Doorgroup

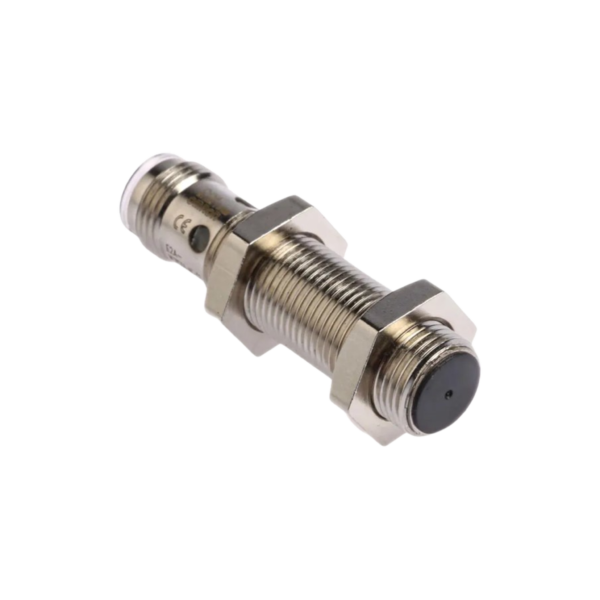

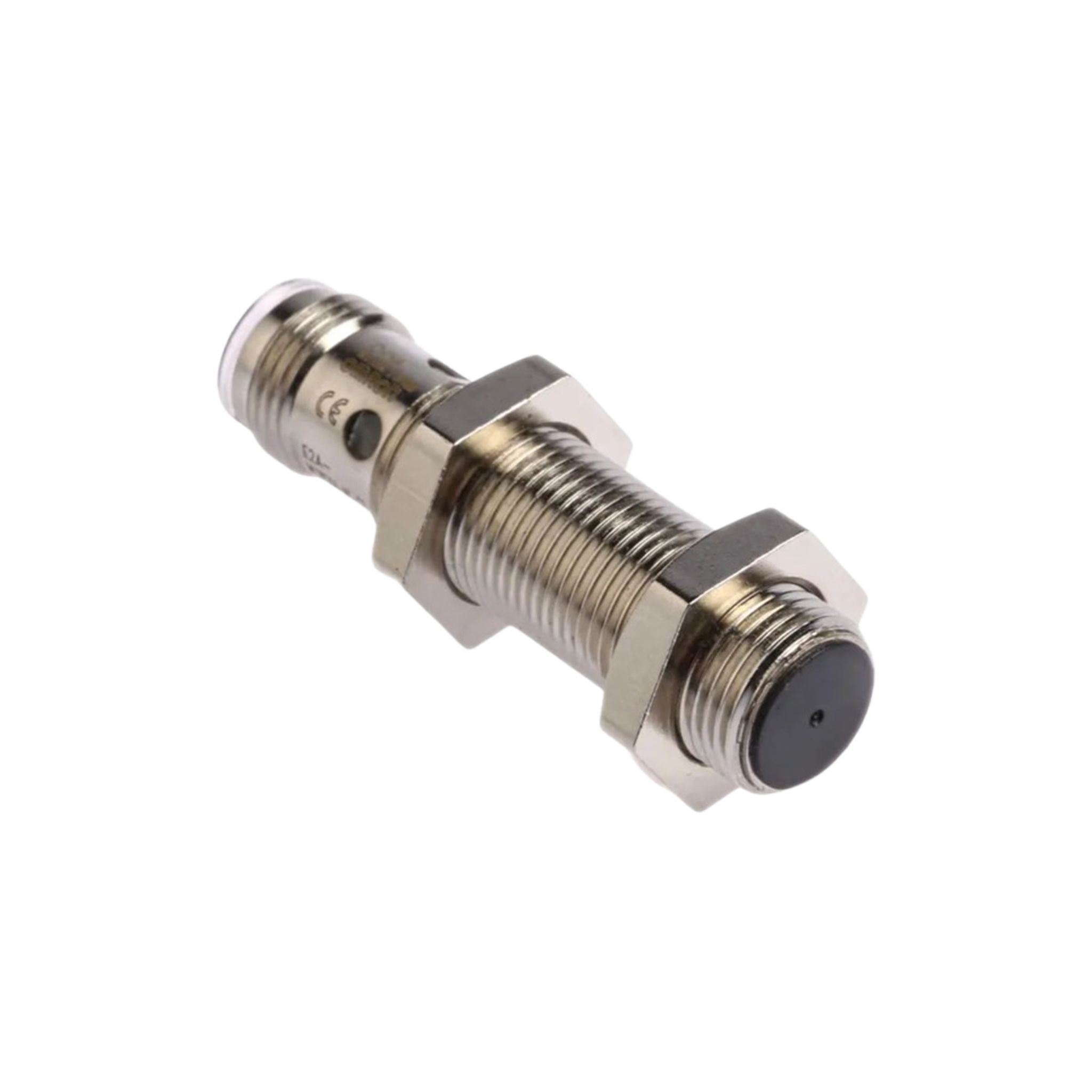

The ELSW-IND.TU.M12PNP is a compact, high-performance inductive proximity sensor designed for precise, non-contact detection of metallic objects. With a standard M12 housing and PNP normally open output, it is ideal for integration into automated systems requiring reliable object detection in challenging environments.

Key Features:

• Sensor Type: Inductive proximity sensor for metal object detection
• Housing Size: M12 tubular design (12 mm diameter)
• Output Type: PNP, Normally Open (NO)
• Sensing Distance: Typically 4–8 mm (varies by flush or non-flush mounting)
• Operating Voltage: 10–30 V DC
• Output Current: ≤ 200 mA
• Switching Frequency: Up to 1 kHz for fast response
• Connection Options: M12 connector or 2/3-wire cable (model dependent)
• Housing Material: Nickel-plated brass or stainless steel for durability
• Protection Rating: IP67 or higher – dust-tight and water-resistant
• Temperature Range: -25°C to +70°C
• Built-in Protections: Short-circuit, overload, and reverse polarity protection

Ideal Applications:

• Industrial Automation: Position and presence detection on production lines
• Packaging Machinery: Object counting and conveyor control
• Robotics: End-of-arm tooling feedback and positioning
• Automotive Manufacturing: Metal part detection and alignment
• Food & Beverage: Stainless steel variants for hygienic environments

M12 Inductive Proximity Sensor – Compact, rugged, and reliable. Supplied by Doorgroup.
