Schneider 800x600x200

Schneider 800x600x200mm

Heavy-Duty Protection for Industrial Applications – Supplied by Doorgroup

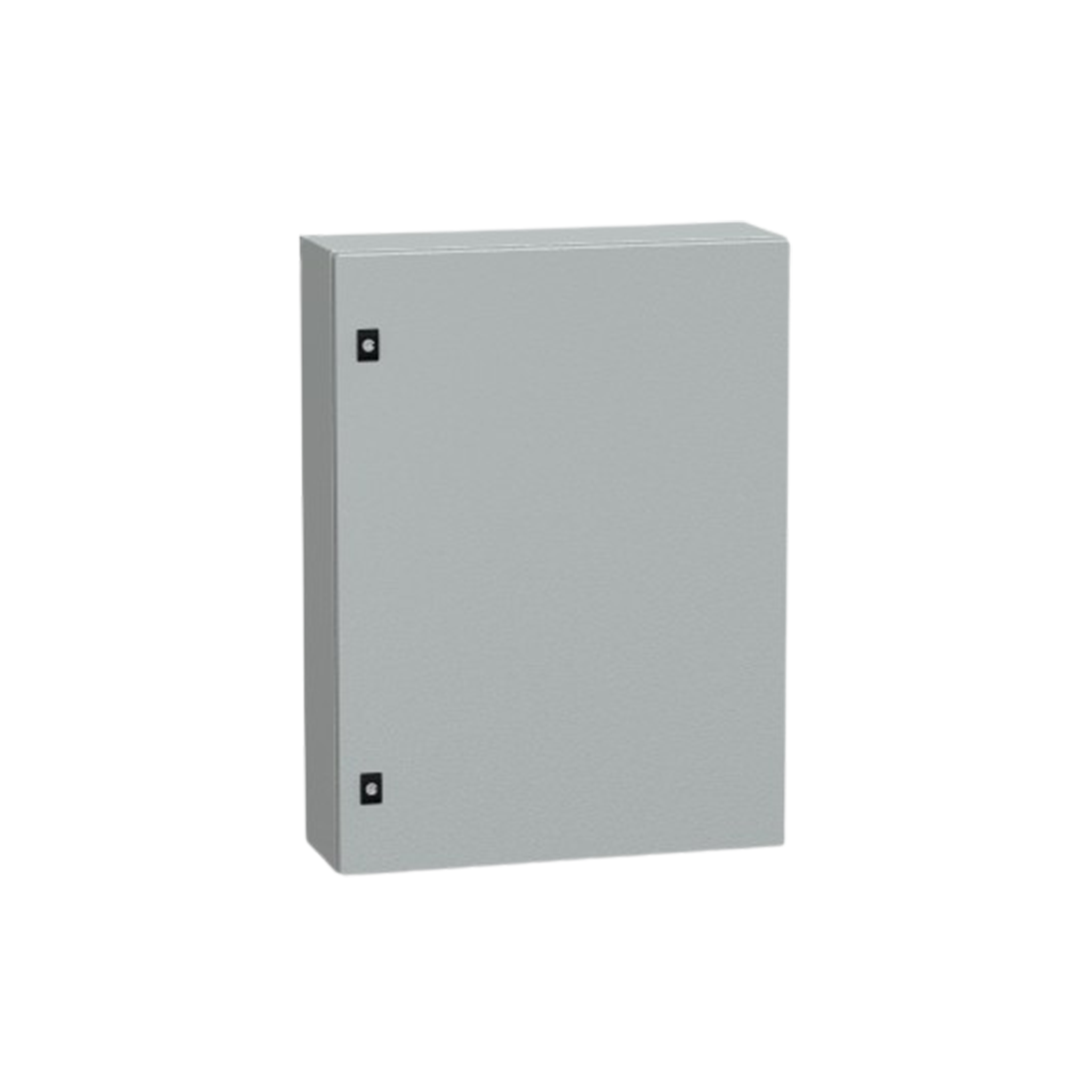

This 800x600x200 mm Wall-Mounted Steel Enclosure is engineered for high-performance protection in industrial and commercial environments. Built to withstand harsh conditions, it offers a secure and weather-resistant housing for electrical and automation components.

Key Features:

• Spacious Dimensions
  800 mm (H) × 600 mm (W) × 200 mm (D) – ideal for larger control and distribution setups.
• Durable Steel Construction
  Fabricated from high-quality steel with an epoxy-polyester powder coating for corrosion resistance and long-term durability.
• High Protection Ratings
  • IP66: Fully dust-tight and protected against powerful water jets
  • IK10: Exceptional resistance to mechanical impact
  • NEMA 4X / 13: Suitable for indoor and outdoor use, including washdown areas
• Secure Access
  Solid plain door with a 3-point locking system and 3 mm double-bar lock insert ensures safety and restricted access.
• Mounting Plate Included
  Galvanized steel mounting plate simplifies internal component installation.
• Reinforced Design
  Single-piece body with a gutter-shaped front rail enhances structural rigidity and aesthetics.

Certifications & Standards:

• Compliant with IEC 62208, IEC 60529
• Certified by UL, cUL, DNV, GL, and BV

Environmental & Build Details:

• Weight: Approx. 29 kg
• Operating Temperature: Suitable for a wide range of indoor and outdoor environments
• Removable Components: Hinged door, screw-mounted cable gland plate, and mounting plate for easy customization

Ideal Applications:

• Electrical distribution systems
• Industrial automation and control panels
• Harsh or outdoor environments
• Secure housing for sensitive equipment

Wall-Mounted Steel Enclosure – Built for resilience. Supplied by Doorgroup.
