Schneider 800x800x250

Schneider 800x800x250mm

Heavy-Duty Protection for Industrial and Outdoor Applications – Supplied by Doorgroup

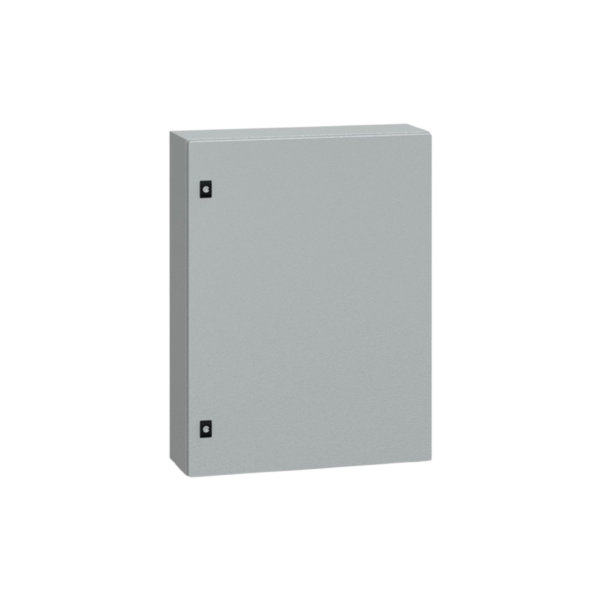

This 800x800x250 mm Wall-Mounted Steel Enclosure is built to deliver exceptional protection and durability in demanding environments. Designed for both indoor and outdoor use, it provides a secure and weather-resistant housing for electrical and automation components.

Key Features:

• Spacious Dimensions
  800 mm (H) × 800 mm (W) × 250 mm (D) – ideal for large-scale control and distribution systems.
• Durable Steel Construction
  Made from high-quality steel with an epoxy-polyester powder coating for superior corrosion resistance and long-term performance.
• High Protection Ratings
  • IP66: Fully dust-tight and protected against powerful water jets
  • IK10: High resistance to mechanical impact
  • NEMA 4X / 13: Suitable for harsh, outdoor, and washdown environments
• Secure Access
  Solid plain door with a 3-point locking system and 3 mm double-bar lock insert for enhanced security.
• Mounting Plate Included
  Galvanized steel mounting plate simplifies internal equipment installation.
• Reinforced Design
  Single-piece body with a gutter-shaped front rail for added rigidity and water resistance.

Certifications & Standards:

• Compliant with IEC 62208, IEC 60529
• Certified by UL, cUL, DNV, GL, and BV

Environmental & Build Details:

• Weight: Approx. 40 kg
• Operating Temperature: Suitable for a wide range of industrial environments
• Removable Components: Hinged door, screw-mounted cable gland plate, and mounting plate for easy customization

Ideal Applications:

• Electrical distribution systems
• Industrial automation and control panels
• Outdoor and washdown-prone environments
• Secure housing for sensitive electrical equipment

Wall-Mounted Steel Enclosure – Built for resilience and reliability. Supplied by Doorgroup.
